Oriented Bounding Boxes (OBBs)¶

../../_images/obb-run-dark.png
../../_images/obb-run-light.png

Oriented bounding boxes describe objects with a rectangle that can rotate, allowing a tighter fit than axis-aligned boxes. A 2D OBB is typically represented by its center, size, and rotation.

Creating Tables¶

The structure of an OBB column is defined by its Schema, returned from OrientedBoundingBoxes2D.schema(). The schema-builder lives on the dataclass it serializes, keeping the runtime type and its column description paired.

When working directly with OBB data, use the OrientedBoundingBoxes2D dataclass. It can be constructed directly with numpy arrays, or built incrementally:

import numpy as np
import tlc

# Direct construction
obbs = tlc.data_types.OrientedBoundingBoxes2D(
    obbs=np.array([[50, 50, 80, 60, 0.5], [100, 100, 40, 30, 1.0]], dtype=np.float32),
    labels=[0, 1],
    x_max=640.0,
    y_max=480.0,
)

# Or build incrementally
obbs = tlc.data_types.OrientedBoundingBoxes2D.create_empty(image_width=640, image_height=480)
obbs.add_instance(
    obb=[320.0, 240.0, 100.0, 50.0, 0.785],  # [cx, cy, w, h, rotation-radians]
    label=0,
    confidence=0.95,
)

Reading OBBs back from a table returns the same dataclass:

sample = table[0]
sample["obbs"].obbs.shape            # (num_instances, 5) with [cx, cy, w, h, rotation]
sample["obbs"].labels.shape  # (num_instances,) if labels are present

Angle and Normalization Conventions¶

  • Representation: Each OBB instance is stored as [center_x, center_y, width, height, rotation].

  • Units: center_x/center_y/width/height are in pixels in Table rows; rotation is in radians.

  • YOLO-OBB import: The YOLO-OBB reader expects 8 normalized coordinates (four vertices in [0, 1]) and converts them to a minimal-area rectangle. Values are denormalized to pixels and the angle is normalized to ([0, \pi/2)).

Framework Integration¶

The following frameworks are supported for working with OBBs:

  • Ultralytics YOLO OBB: Full integration for rotated detection via YOLO-OBB datasets

  • Custom PyTorch Models: Use direct Table access with OrientedBoundingBoxes2D in your training loops

Examples and Tutorials¶

Visualization¶

Display OBBs on a chart¶

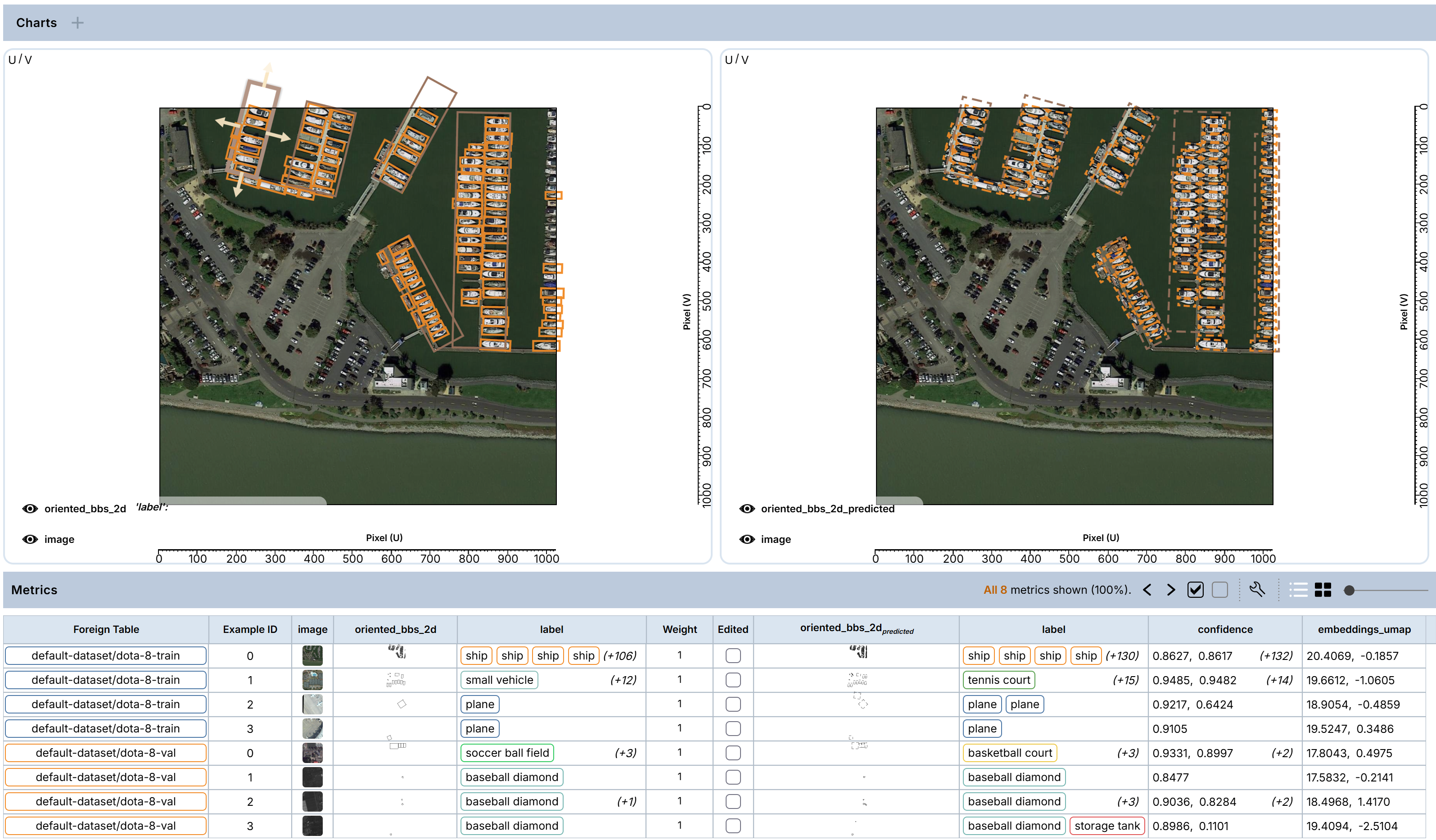

Like for regular axis-aligned BBs, select the Oriented_BBS_2D and Image columns, press 2 to create an image+OBB chart. Similarly, use the Oriented_BBS_2D_predicted column to create a chart for predicted OBB.

Editing¶

Create and edit an OBB¶

The options for creating an OBB are the same as for creating an axis-aligned BB. Please refer to this page for details.

In addition, OBBs can be drawn directly with the dedicated Paint oriented bounding box chart tool (Ctrl + U), located at the top right of the chart next to the axis-aligned paint tool (U). The tool places a box from three corners, and the interaction mode is deduced automatically as you go:

  • Click, click, click: each click places one corner.

  • Click, drag, click: the drag defines the initial edge.

  • Click, click, drag: the drag defines the width.

While a box is under construction, it is drawn as the box it will become, with the edges that still follow the cursor shown as dashed lines. The camera can be panned and zoomed between the clicks. Pressing Esc drops a half-made box while keeping the tool active. A second press deselects the tool.

Editing an OBB is also similar to editing an axis-aligned BB, except that an OBB can be rotated, in addition to being moved and resized. The operations available for editing an OBB are listed below.

Editing an OBB

  • Dragging an edge of an OBB will allow for resizing and/or rotating the OBB around its center point. A visual indicator of both resizing and rotating will appear when hovering over an edge.

  • Ctrl + LeftDragging on an edge will only resize the OBB.

  • Shift + LeftDragging on an edge will only rotate the OBB.

  • Dragging a corner of an OBB will only resize the OBB.

  • Dragging inside an OBB will move it.

Derive OBB properties¶

There are some common properties shared between standard BBs and OBBs, such as area and aspect ratio, etc. You can also derive some special properties such as angle, center(x), center(y), and distance to origin for OBBs. To derive a property virtual column, select the Oriented_BBS_2D or Oriented_BBS_2D_predicted column, RightClick on the column header to bring up the context menu, then you can select the property you want to create.

Then, you can plot or filter on those derived properties. For example, the scatter chart below is plotted with the angle vs. aspect properties after they are derived.

Shared functionality between BBs and OBBs¶

Here is a list of shared functionality between BBs and OBBs. Please refer to the corresponding sections for details.
